Electric Industrial Oven ,Clean, Precise Heat for Modern Manufacturing

ZonHoo industrial electric ovens deliver tight thermal control (±1–2 °C uniformity), zero on-site emissions, and programmable ramp/soak profiles for repeatable results in cleanrooms, labs, and regulated production. With aerospace-grade insulation, CFD-tuned airflow, and PID/SCR power control, the system maintains stable, uniform heat—from first article to full-rate production—while scalable configurations and application-specific options align with your process requirements.

Industrial Electric Oven Details:

Industrial Electric Oven

Specifications for Electric Oven

Model	Industrial Electric Oven
Max. Operating Temperature	Up to 1200°F (650°C)
Temperature Uniformity	±3°F (±1.5°C), Optional ±2°C
Control Accuracy	±0.2–0.3% (with PID + SCR)
Heating Method	Electric Resistance Heating
Heating Power	12 – 300 kW
Thermal Efficiency	>85%
Heat-up Time	≤60 mins
Airflow Direction	Horizontal / Vertical / Top-Down (Configurable)
Lining Material	Type 304 Stainless Steel, 1.5mm Thick (Optional 316L)
Exterior Material	Powder-coated Cold-rolled Steel, High-temp Finish
Insulation	100–200mm High-Density Mineral Wool / Ceramic Fiber
Exterior Surface Temp. Rise	≤Ambient +25°C
Over-temperature Protection	Dual Safety Cutoff: Digital + Mechanical
Airflow Alarm	Fan Failure Detection with Auto Heater Shut-off
Pressure Relief	Not Required (Electric, Non-Explosive Process)
Electrical Protection	Short Circuit, Over-current, Phase Loss Protection
Mechanical Door Latch	Heavy-duty Interlock, Manual or Magnetic
Loading Method	helf, Rack, Cart or Pallet (Based on Chamber Size)

From Concept to Installation —
We’ve Got You Covered

Standard Features for Electric Oven

Engineered for Electric Precision & Reliability

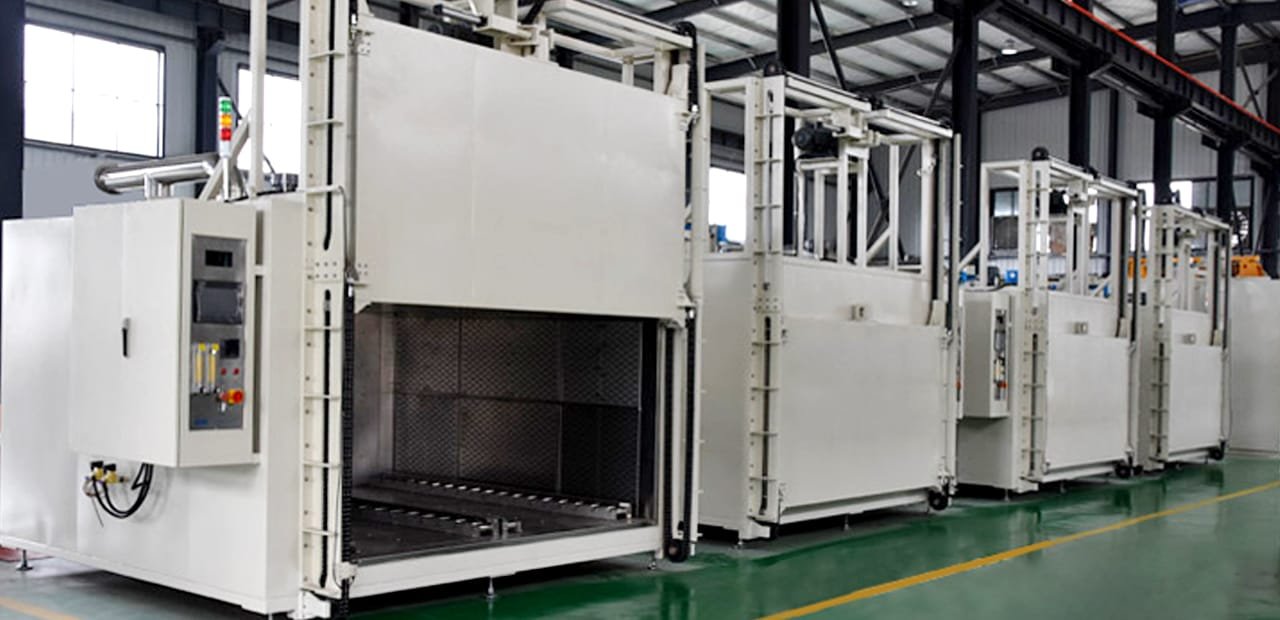

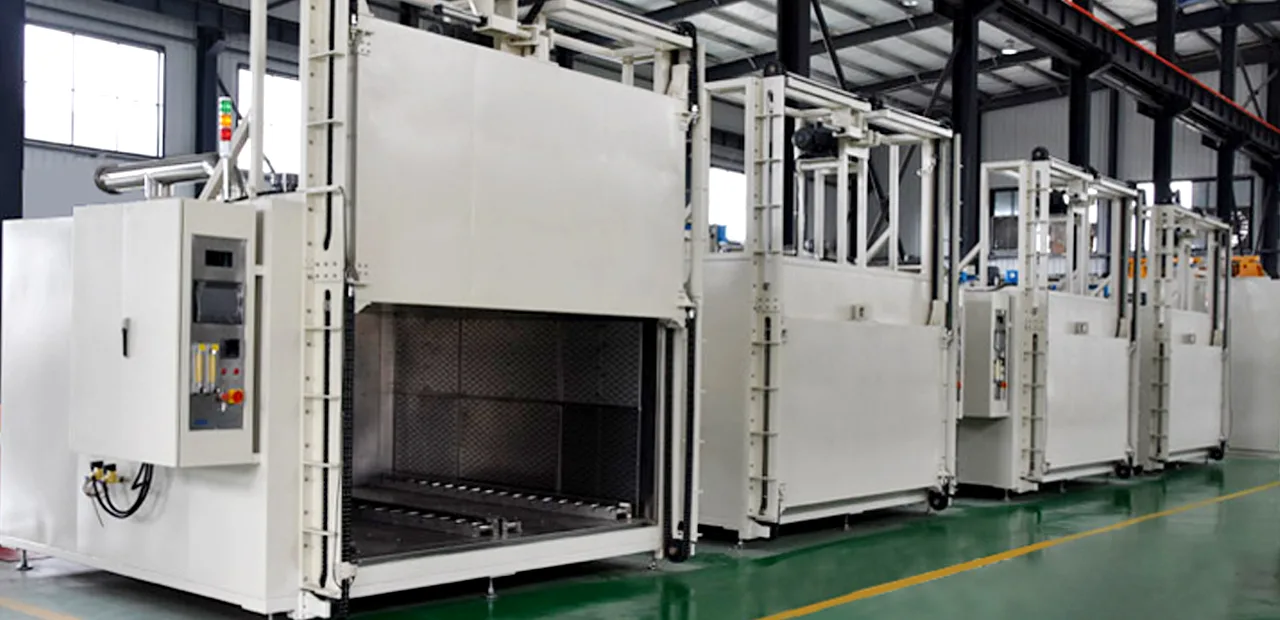

High‑efficiency electric batch ovens for precision heating and clean operation
Compact to large‑format chambers for multi‑rack or cart loading

Power: 208/230/380/460 V, 3‑phase, 50/60 Hz (custom on request)
Controls: dual‑display PID with auto‑tune and 99‑segment recipes
Heating control: SCR linear power regulation, smooth ramp/soak curves
Temperature accuracy: ±2 °C uniformity, ±0.3 % control stability
Data: optional logging with CSV export and trend curves
Frame: welded unibody steel chassis, vibration‑resistant design
Interior: 304 SS (optional 316 L) with polished finish
Exterior: powder‑coated cold‑rolled steel, high‑temp enamel
Insulation: 100–200 mm high‑density mineral or ceramic fiber
Airflow: side‑to‑side / top‑down recirculation, balanced ducting
Heating elements: nickel‑chrome or Incoloy tubular elements
Thermal efficiency: >85 %, rapid recovery after door closure
Safety: independent over‑temp protection, fan‑failure interlock
Electrical protection: short‑circuit, phase‑loss, over‑current
Ventilation: adjustable intake/exhaust, optional HEPA filter
Clean operation: zero on‑site emissions, no combustion risk
Compliance: CE/UL components, AMS 2750 optional calibration

Safety Assurance

Standard Safety Features:

Auto Temperature Cycling – Programmable heat / soak / cool stages
Dual Over-Temperature Protection – Manual-reset high-limit + independent safety limiter with alarm
Electrical Protection – Phase-loss detection, ground-fault circuit breakers, short-circuit, overload, overcurrent safeguards
Heating Fail-Safe – Independent heater contactors drop on main-contactor fault
Airflow Interlock – Loss of airflow immediately disables heating
Blower Interlock – Blower power loss triggers heater shutdown
Motor Overload Protection – Thermal sensors or external overload relays

Optional Add-Ons (for sensitive or hazardous applications):

Solvent vapor concentration monitoring
Combustion chamber pressure sensor
Flame supervision system (for hybrid configurations)
Part-temperature thermocouple override

All safety circuits are factory-tested and documented before shipment.

Certifications

Certification & Compliance: Global Standards, Local Assurance

Seamless Market Access: Certification-Ready Design
Certified Safety Components: Assured Reliability
End-to-End Quality Assurance: ISO 9001 Certified Manufacturing
Pre-engineered for global certification pathways (CE, UL, and beyond)—compliant integration facilitated for your target market.
Every oven is built under a certified quality management system, ensuring repeatable performance and traceable production.

oven control

Digital PID controller with ±0.1–1°C accuracy and self-tuning.
Timer (1s–99.99h) with auto cut-off and audible alarm.
Dual sensors: PT100 for control, K-type for over-temp safety.
SSR output for smooth power delivery and longer component life.
Alarms for cycle completion and fault detection.
Circuit protection: leakage, phase loss, overload.
Optional: data logger with USB or chart output.

Industrial Electric Oven FAQ

What are the advantages of electric ovens vs gas/steam?

Why Electric Industrial Oven

Electric heating gives you tighter control, a cleaner workspace, and simpler facilities—ideal for electronics, composites, coatings, and regulated production.

Precision & Uniformity
Clean Operation (No Combustion By-products)
Facility Simplicity & Siting
Energy & TCO
Controls & Data
Safety & Compliance

When Gas May Still Make Sense

Very high thermal loads with abundant low-cost gas, or where existing burner infrastructure is mandatory. ZonHoo can advise case-by-case.

Further Reading: How to Choose Between Electric and Gas Ovens—and Why It Matters?

Why Choose ZonHoo?

Verified Uniformity — CFD-tuned airflow + baffled ducting hold ±1–2 °C across the chamber under load; ideal for industrial electric oven processes that demand repeatability.
Precise Control — PID + SCR power modulation, programmable ramp/soak profiles, fast recovery after door-close.
Thermal Envelope — Aerospace-grade insulation and sealed panels reduce loss and stabilize long dwell cycles.
Compliance-Ready — CE/UL components, ISO 14644/GMP options (stainless interior, HEPA recirculation), calibration docs for audits.
Reliability & Uptime — Remote diagnostics, spare-parts kits, on-site service; contractual uptime targets (e.g., ≥99.5%).
Configurable Loading — Racks, shelves, or carts; side-to-side or top-down airflow matched to your parts.
Data & Integration — USB/Ethernet logging (CSV/PDF), recipe recall, optional PLC/HMI and barcode triggers.
Safety Stack — Independent over-temp cutoff, fan/heater interlocks; solvent packages with LEL monitoring and XP/ATEX (optional).

How is temperature uniformity guaranteed—and why does it matter?

ZonHoo engineers uniform airflow with CFD-designed ducting, high-efficiency recirculation, and tuned baffles to remove hot/cold spots. Typical results reach ±1–2 °C (size-dependent) and are verified by an acceptance uniformity map. Consistent uniformity prevents under-cure, defects, and rework—lowering total cost of ownership (TCO).

Further Reading: Why uniformity matters in heat-treatment ovens

What power and installation requirements should we plan for?

Typical: 3-phase 380–480 V, 50/60 Hz. We size feeders, breakers, and SSRs to your load profile. No combustion venting needed, simplifying facilities planning.

Is it energy-efficient? What about TCO/ROI?

Further Reading: How should I plan my oven system?

What is the typical lead time and project plan?

Standard builds: 8–12 weeks depending on size/temperature/options.

We provide a gated timeline (design → fabrication → FAT → shipment → SAT).

Lock specs early → ship sooner | Boost output & ROI faster

Is it safe for solvent-bearing processes?

Yes—ZonHoo supports LEL monitoring, purge logic, interlocked fans/heaters, rated wiring, and XP/ATEX packages where required. A quotation follows a process safety review.

Further Reading: Is solvent processing safe—and how do we enable explosion protection? →

What maintenance and uptime support do you provide?

ZonHoo provides routine checks on fans, heating elements, and door seals; plus remote diagnostics, spare-parts kits, and on-site service to help keep uptime ≥99.5% (per contract).

Further Reading: How can I get service & spare parts?

Why is ZONHOO the Smartest Choice for a Walk-In Oven?

Many oven manufacturers assemble components from third-party suppliers, creating a critical disconnect between the heating system and the chamber it serves. This often results in inefficient performance, premature failure, and costly downtime.

The “Heart” Built by Specialists: While others buy generic heating elements, we design and manufacture our own. This allows us to custom-engineer the element’s watt density, material (such as durable Incoloy), and configuration to perfectly match the airflow dynamics and thermal mass of your specific walk-in oven. The result? Faster heat-up times, lower stress on the elements, and a dramatically longer lifespan compared to ovens using off-the-shelf heating components.
Holistic System Integration: Because we build the core heating system, we can seamlessly integrate it with our SCR power controllers and patented airflow design. This eliminates the compatibility issues and performance gaps common in assembled solutions. You get perfect synchronization between heat generation and heat distribution, ensuring superior temperature uniformity and eliminating the hot spots that ruin product quality.
This foundational control over the most critical component is why a ZongHeng oven delivers unmatched reliability and energy efficiency. You aren’t just getting an oven; you are getting a fully integrated thermal system born from decades of specialist expertise in creating heat itself. This translates directly to less downtime, lower operating costs, and a higher return on your investment.

What happens if the temperature controller fails? Is there an over-temperature protection?

What happens if the temperature controller fails?

Yes. ZONHOO ovens use a multi-layer safety stack. If the main temperature controller fails or drifts, an independent high-limit safety cuts heater power automatically, circulation fans keep running to purge heat, alarms trigger, and the system requires a manual reset before restart.

*Tell us your load, dimensions, and process—we’ll engineer the right oven and quote fast.*

Gas Heating (High Throughput, Large Chambers)

Primary Control: High-accuracy PID control (e.g., PT100/RTD input) for tight regulation.
Independent High-Limit: A separate, hard-wired safety is set above the process setpoint (typ. +3–5 °C). It does not rely on the main controller; once tripped it kills all heaters.
Runaway Cutoff: A second threshold can force a hard cutoff (typ. +10 °C) for worst-case runaway.
Cool-Down Logic: Heat is off; fans run 15–30 min to shed heat and protect product.
Alarms & Records: Audible/visual alarms, event logs, optional remote notifications.
Manual Reset: Operator confirms safe temperature before the oven can restart.
ZongHeng Promise: We size sensors, safeties, and interlocks to your load, temperature, and takt so protection remains effective under real-world conditions.

*Tell us your load, dimensions, and process—we’ll engineer the right oven and quote fast.*

Steam Heating (Uniform, Utility-Integrated)

Controller Fault / Sensor Error: High-limit trips; heaters off; fans purge; operator manual reset after temps return to safe band.
Power Loss / Return: Controlled recovery with sensor self-check; if temps are high or readings abnormal, system stays in safe lockout.
VOC/Solvent Loads (optional): Purge timers, LEL interlock, and exhaust control available following best practices for industrial ovens.
Heavy / High-Mass Loads: Floors, carts/rails, and airflow are engineered with 1.5–2.0× safety factors so protection logic remains reliable at full load

*Tell us your load, dimensions, and process—we’ll engineer the right oven and quote fast.*

Advanced Options (When the Spec Demands More)

Standards: Designed to support applicable CE documentation by configuration; OSHA/NFPA-informed safety practices; UL/CSA evaluation or field labeling available by model.
Proof: Optional SAT/TUS mapping and alarm tests can be included at FAT/SAT.
What We Need: Peak temp & dwell, load mass/footprint (uniform vs. wheel/point), VOC presence, and any site codes to meet.

*Tell us your load, dimensions, and process—we’ll engineer the right oven and quote fast.*

Are there safety interlocks for airflow loss or power failure?

Airflow-loss protection (fan/exhaust failure):

We directly monitor airflow (e.g., fan-prove, differential pressure/air-velocity sensing). If airflow drops below a safe threshold—fan stops, belt breaks, exhaust is blocked—the heater contactors de-energize instantly, alarms trigger, and the system will not re-enable heat until the fault is cleared and an operator performs a manual reset. In higher-risk applications, airflow loss can also release the door lock to support safe egress.

Power-failure safety (brownout/blackout/restore):

A loss of power is inherently fail-safe: heaters drop out. Our standard design uses de-energize-to-release door hardware; many models add a mechanical/gravity release so the door can be opened even if an electric strike were to fail. On power restoration, the oven remains in safe lockout until temperatures are back in range and an operator acknowledges the event. For critical sites, we can add UPS to keep alarms, controls, and egress devices alive long enough for a controlled response.

Design options to match your risk profile:

Redundant airflow sensors for high-hazard duty, LEL/purge interlocks where VOCs/solvents are present, and dual-source/UPS packages for pharma/chem plants that require continuous alarm visibility. We size these protections to your peak temperature, load mass/footprint (uniform vs. wheel/point), utilities, and site code requirements.

Tell us your process and site constraints—we’ll right-size the interlocks and documentation for your jurisdiction. Configure & Quote (ZongHeng).
