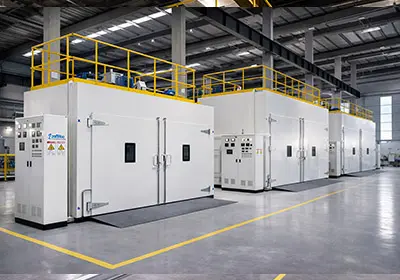

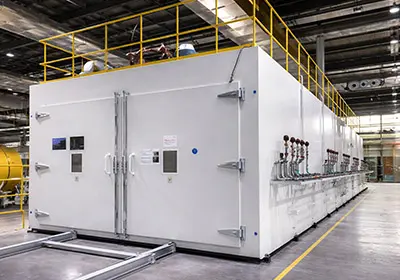

HIGH TEMP CART OVEN
ZonHoo high temp cart ovens (trolley ovens) are designed for elevated-temperature batch processing where fast load/unload and repeatable cart positioning improve throughput. This format supports staged carts, rack fixtures, and frequent cycle changes while maintaining stable temperature control at high temperature ranges (process-defined). Typical uses include high-temperature heat soak, preheating of assemblies on racks, controlled bake cycles for process-defined materials, and other elevated-temperature recipes requiring repeatability and safe operator interaction. Each high temperature cart oven is configured to your RFQ: cart size and rack layout, working volume, temperature profile (ramp/soak), airflow approach through loaded racks, door durability for frequent cycling, safety interlocks, and documentation—so engineering teams can approve the configuration and procurement teams can quote with clarity.
High Temp Cart Oven Options
High temp cart ovens can be configured around your cart workflow, rack density, and temperature profile. Options focus on high-temperature durability, rack airflow through loaded parts, and operator-safe frequent interaction. Contact ZonHoo for an engineering review aligned to your RFQ and site utilities.
- Trolley/rail system: guided rails, stops, cart alignment features, and thermal expansion allowances for repeatable positioning.
- Wheel & bearing selection: high-temperature wheel materials, bearing strategy, and service intervals for repeated thermal cycling.
- Rack layout & fixturing: multi-shelf racks, tray supports, fixture points, and spacing guidance to balance density and airflow.
- Airflow through loaded racks: recirculation design, baffles/ducting, and distribution strategy to improve heating consistency across shelves.
- Door durability for frequent cycles: reinforced frame, latch/lock strategy, sealing approach, and door safety interlocks.
- Thermal control: programmable ramp/soak recipes, multi-step holds, product thermocouple inputs, and repeatability features.
- Documentation & traceability: data logging, cycle reports, alarm history, and documentation scope aligned to QA/audit needs.
- Safety & interlocks: over-temperature protection, door status logic, airflow/fan proven logic (as configured), and emergency stop integration.
- Workflow productivity options: multiple carts for staging, quick-change racks, and loading aids to reduce downtime between batches.
Key Specs (Custom)
- Temperature Range: Custom high-temperature configuration (process-defined)
- Working Volume: Custom (RFQ-based)
- Cart Size & Rack Layout: Custom per load dimensions and batch quantity
- Rail/Guide System: Guided rails and stops (optional)
- Wheel & Bearing System: High-temperature selection for repeated cycling
- Airflow Design: Engineered recirculation for rack loads
- Control Mode: Programmable ramp/soak recipes
- Traceability: Data logging, cycle reports (optional)
Typical Applications
- Powder coating cure support using staged trolleys for faster batch turns (frequent load/unload, rack airflow).
- Adhesive curing on multi-shelf racks with repeatable cart positioning (trolley/rail alignment).
- Printing industry thermal drying/bake where quick-change carts reduce downtime between jobs.
- Surface treatment bake cycles on racks with consistent spacing (airflow through loaded shelves).
- Plastics processing heat conditioning using multiple carts for continuous batch flow (staged carts).
- Friction materials curing/forming cycles with rack fixtures and repeatable ramp/soak recipes.
- Pharma/Food equipment preheating on carts when frequent cleaning/handling is needed (operator-safe workflow).
- General drying for rack-loaded components where cart rotation improves throughput (quick load, quick unload).
Standard Features:
- High-temperature chamber construction engineered for repeated thermal cycling in batch production.
- Cart/trolley-ready workflow design supporting frequent loading and consistent positioning.
- Airflow distribution approach for rack loads (baffles/ducting by configuration).
- Programmable controller supporting ramp/soak recipes, alarms, and stable setpoint control.
- Safety system including over-temperature protection, door status logic, and emergency stop interface (site-configurable).
- Service-friendly design for wheel/bearing maintenance and routine inspection (by configuration).
- Documentation package for quoting and commissioning support (drawings, manuals, and test scope by project).
- Trolley/rail positioning (repeatable loading)
- High-temp wheel & bearing durability
- Rack airflow through loaded shelves
- Frequent door cycling design
- Ramp/soak recipes (batch control)
- Data logging / cycle reports (optional)
- Safety interlocks (over-temp, door status)
